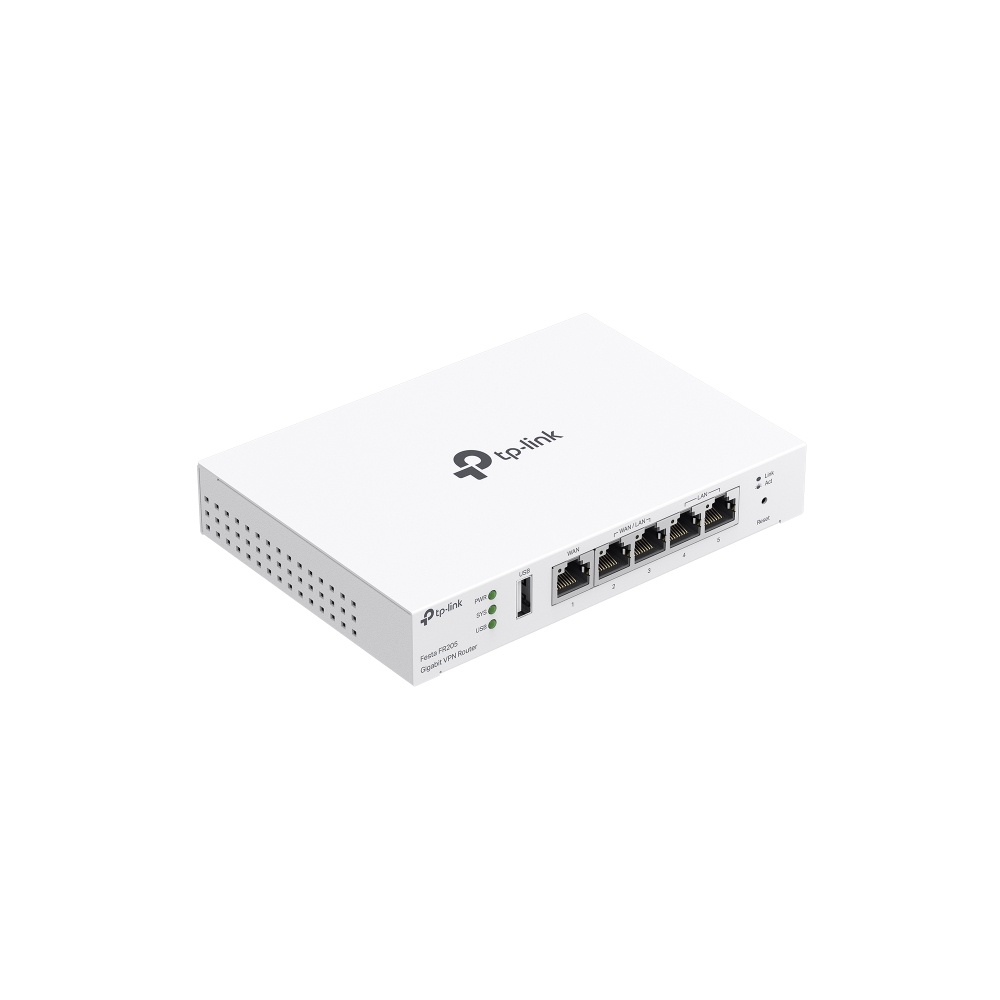

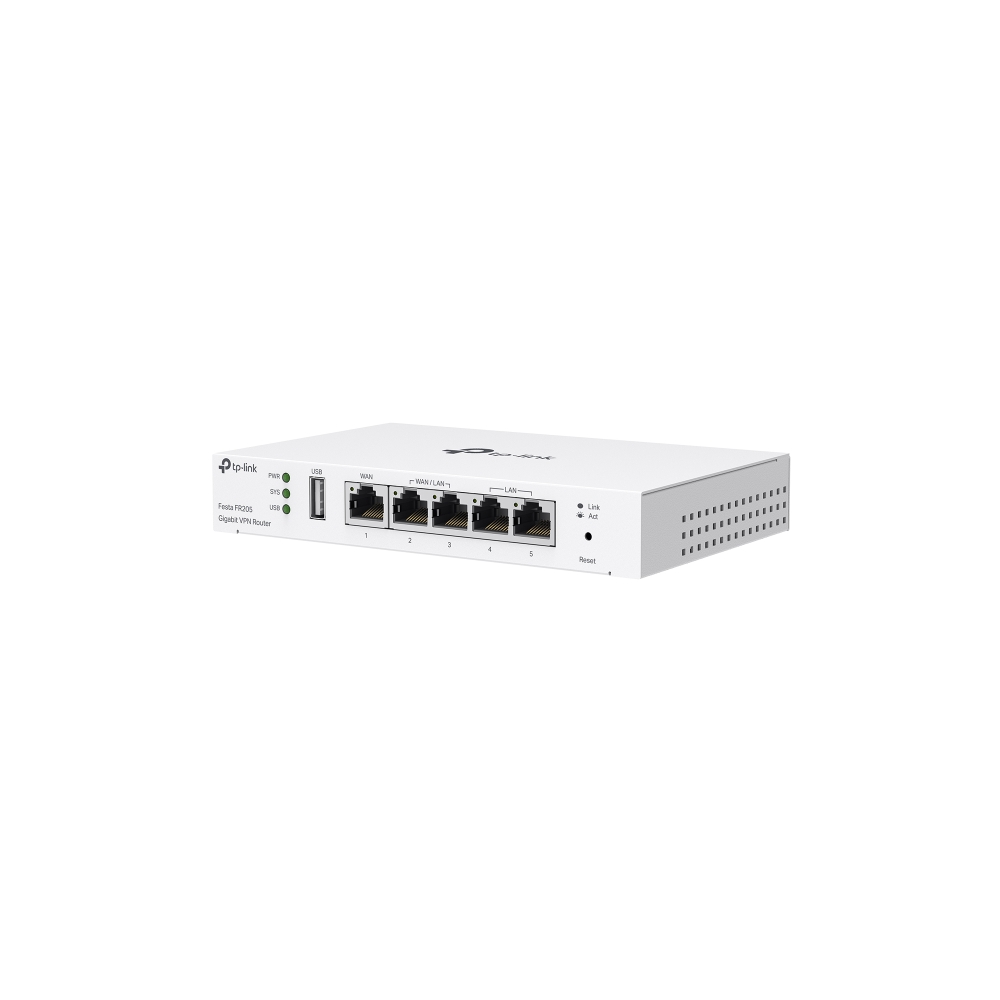

Festa FR205
Routeur - 1 GB - Modem intégré - Switch intégré - Firewall intégré
Code EAN :
8885020621525
Référence produit :
07000560
Référence constructeur :
Festa FR205
Photos non contractuelles
Caractéristiques principales :
- Norme : 1 GB
- Modem intégré : Modem intégré
- Switch : Switch intégré
- Firewall : Firewall intégré
| Sécurité | |
| Contrôle d'Accès | Source/Destination IP-Based Access Control |
| Filtrage | URL Filtering |
| CARACTERISTIQUES MATERIELLES | |
| Standards et Protocoles | IIEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP | |

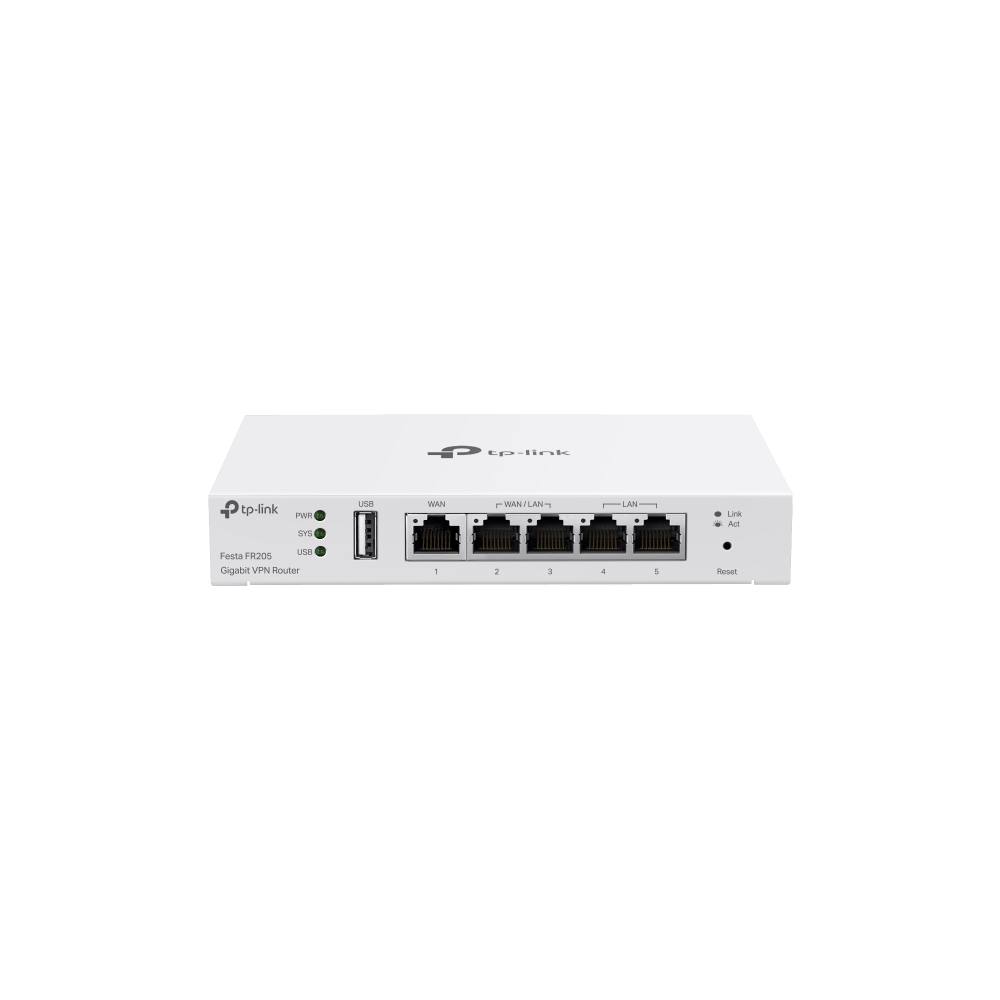

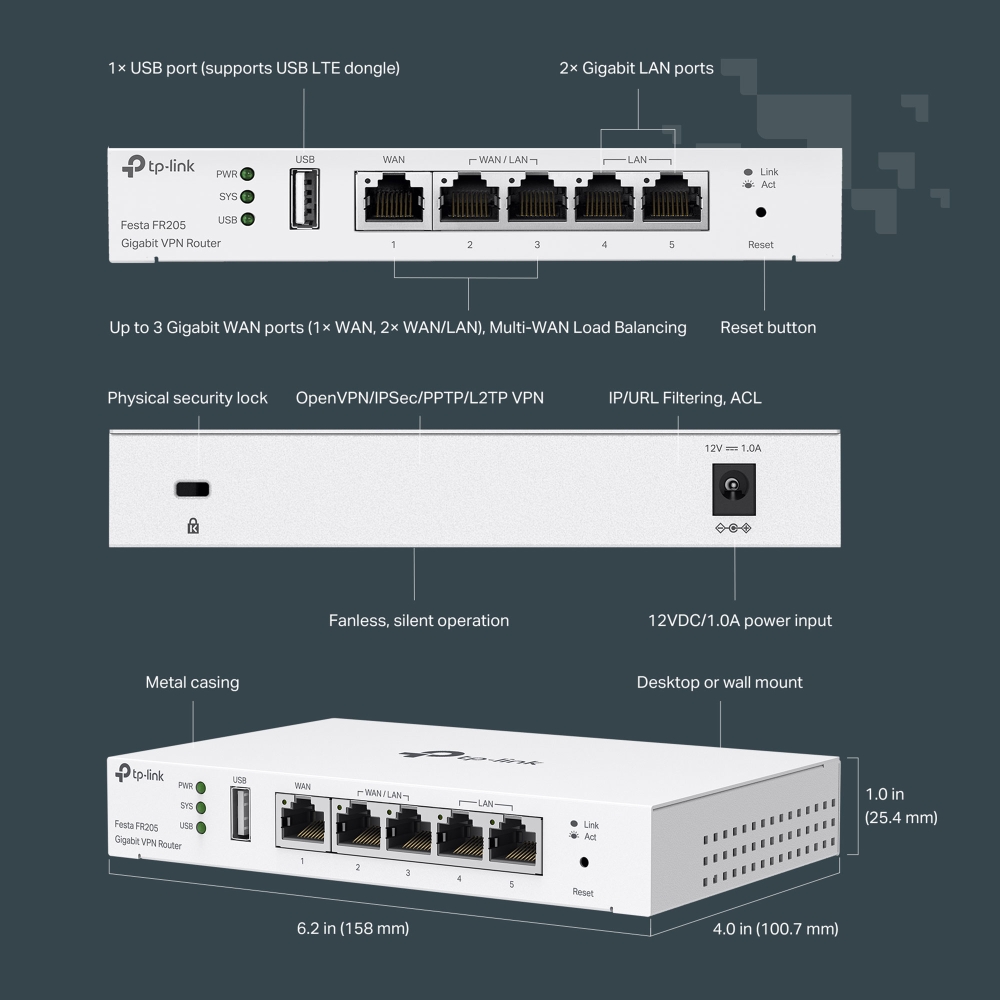

| Interface | 1× Gigabit WAN port |
| 2× Gigabit WAN/LAN ports | |
| 2× Gigabit LAN ports | |
| 1× USB 2.0 (supports USB LTE dongle‡) | |
| Interface réseau | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) | |
| 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) | |
| Nombre de ventilateurs | Fanless |
| Bouton | Reset Button |

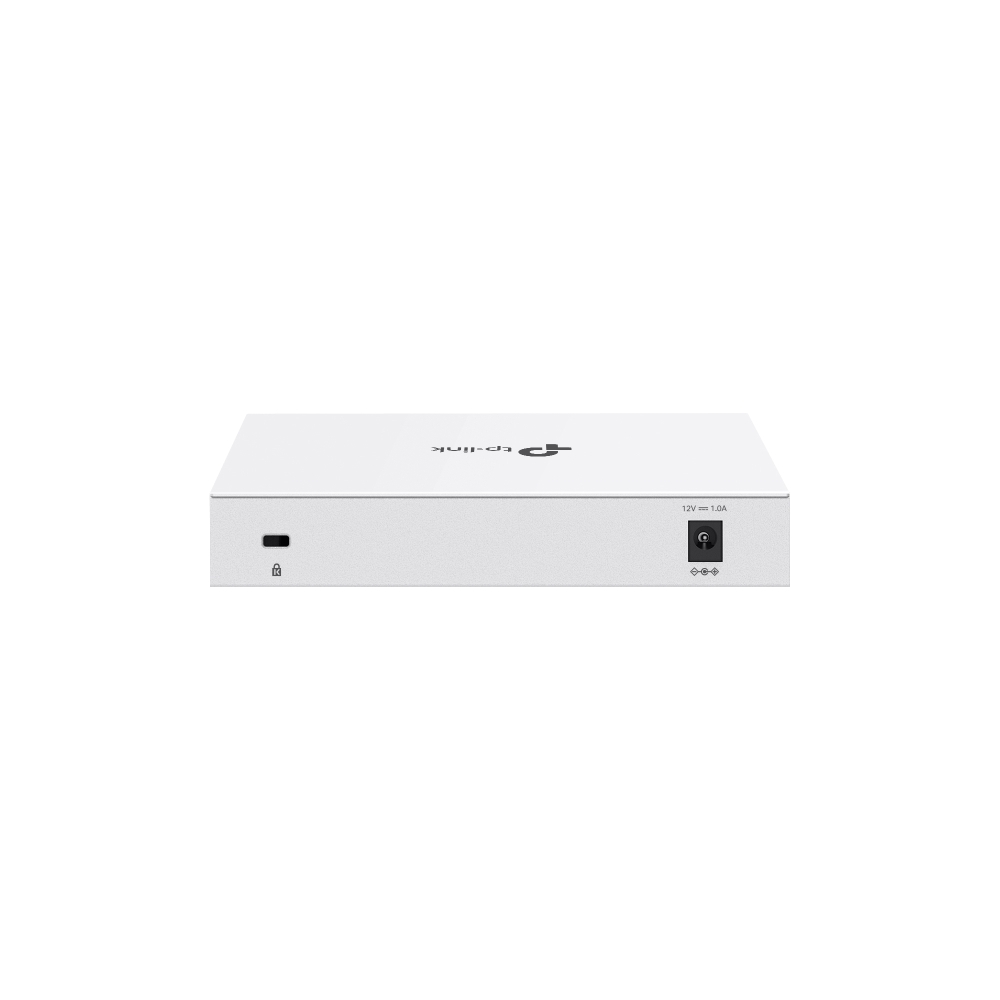

| Alimentation | External 12V/1A DC Adapter |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| DEL | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
| Dimensions (LxPxH) | 158×100.7×25.4 mm |
| Enceinte | Steel |

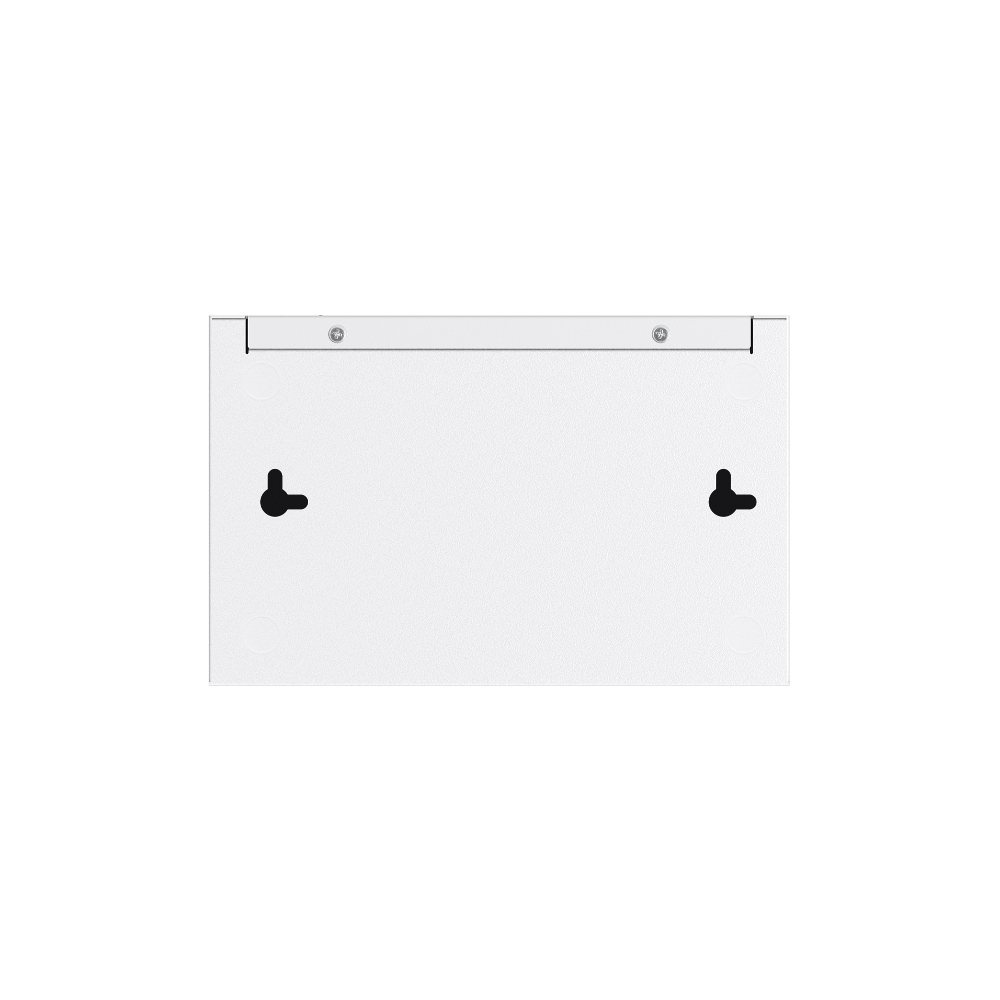

| Montage | Desktop/Wall-mount |
| Consommation maximale | 7.94 W |
| Performances | |
| Session concurrente | 150,000 |
| Nouvelles Sessions /Seconde | 2,600 |
| Bande passante VPN IPsec | ESP-SHA1-AES256: 259.78 Mbps |
| ESP-SHA256-AES256: 260.81 Mbps | |
| ESP-SHA384-AES256: 37.65 Mbps | |
| ESP-SHA512-AES256: 38.32 Mbps | |
| OpenVPN | 21.70 Mbps |
| Débit VPN L2TP | Unencrypted: 640.99 Mbps |
| Encrypted: 77.31 Mbps | |
| PPTP VPN Throughput | Unencrypted: 759.55 Mbps |
| Encrypted: 75.80 Mbps | |
| 66 Byte Packet forwarding rate | Upload/Download: 954.50 Mbps |
| Bi-Directional: 1130.00 Mbps | |
| 1,518 Byte Packet forwarding rate | Upload/Download: 997.50 Mbps |
| Bi-Directional: 1965.00 Mbps | |
| Fonctions de base | |
| Type de connexion WAN | Static IP |
| Dynamic IP | |
| PPPoE (supports MRU Configuration) | |
| PPTP | |
| L2TP | |
| Clone d'adresse MAC | Modify WAN MAC Address |
| DHCP | DHCP Server |
| DHCP Options Customization | |
| Multi-IP Interfaces | |
| Multi-Net DHCP | |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| TRANSMISSION | |
| Load Balance | Intelligent Load Balance |
| Application Optimized Routing | |
| Link Backup (Timing, Failover) | |
| Online Detection | |
| NAT | NAT-DMZ |
| Routage | Static Routing |
| Policy Routing | |
| Contrôle bande passante | IP-based Bandwidth Control |
| VPN | |
| VPN IPsec | 20 IPSec VPN Tunnels |
| LAN-to-LAN, Client-to-LAN | |
| Main, Aggressive Negotiation Mode | |
| DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm | |
| IPsec Failover | |
| IKE v1/v2 | |
| MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm | |
| NAT Traversal (NAT-T) | |
| Dead Peer Detection (DPD) | |
| Perfect Forward Secrecy (PFS) | |
| VPN PPTP | PPTP VPN Server |
| PPTP VPN Client (10)* | |
| 16 Tunnels | |
| PPTP with MPPE Encryption | |
| VPN L2TP | L2TP VPN Server |
| L2TP VPN Client (10)* | |
| 16 Tunnels | |
| L2TP over IPSec | |
| OpenVPN | OpenVPN Server |
| OpenVPN Client (10)* | |
| 50 OpenVPN Tunnels | |
| "Certificate + Account" Mode | |
| Full Mode | |
| Administration | |
| Administration Centralisée | via Festa App or Web UI) |
| APP support | Festa App |
| Accès Cloud | Free Cloud |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface |
| SNMP v1/v2c/v3 | |
| Port Mirroring | |
| Syslog Support | |
| Zero-Touch Provisioning | oui |
| Fonctions d'administration | Self-Organizing Network (SON) |
| Auto Topology | |
| Multi-site Management | |
| Remote Maintenance | |
| Batch Firmware Upgrading | |
| Batch Configuration | |
| Integrated Troubleshooting Tools | |
| Monitor Network Status | |
| Access Condition Logs and Alerts | |
| Autres | |
| Certification | CE, FCC, RoHS,VCCI, BSMI, KC |
| Contenu de l'emballage | Festa FR205 |
| Power Adapter | |
| RJ-45 Ethernet Cable | |
| Quick Installation Guide | |
| Silicone Feet | |
| Système requis | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 |
| MAC OS, NetWare, UNIX or Linux | |
| Environnement | Operating Temperature: 0 °C to 40 °C |
| Storage Temperature: -40 °C to 70 °C | |
| Operating Humidity: 10% to 90% non-condensing | |
| Storage Humidity: 5% to 90% non-condensing |
